KONE Commercial Escalator Details

Description

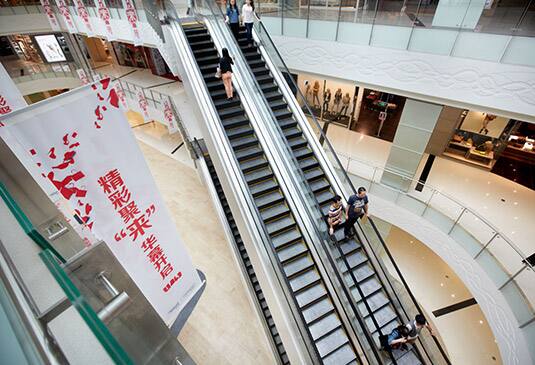

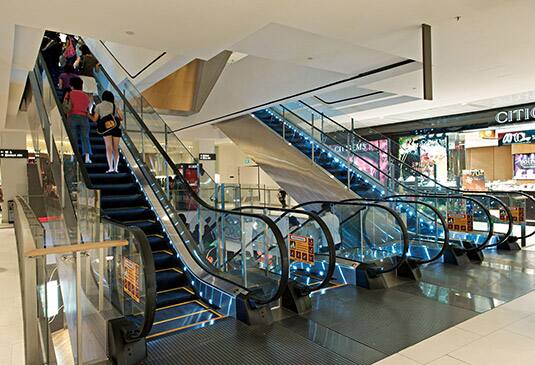

The KONE TravelMaster 110 is an eco-efficient commercial escalator that is optimized for both indoor retail environments and outdoor escalator use cases like an outdoor mall or shopping center.

Specifications

  • Operational environment: indoor, semi-outdoor, full outdoor
  • Speed: 0.5 m/s
  • Inclination: 30º, 35º
  • Step width: 600, 800, 1000 mm
  • Vertical rise: up to 13 m

Commercial Escalator Safety

  • Escalator and lift safety is the starting point for every travelator design. The TravelMaster™ 110 commercial escalator conforms to all local and international safety codes.
  • We provide standard commercial escalator safety features, including comb plate impact device switches and escalator emergency stop buttons for passengers.

KONE Tools and Downloads

More tools and downloads

KONE Commercial Escalator Options and Highlights

Travelmaster 110, 120

KONE COMMERCIAL ESCALATOR ENERGY-EFFICIENCY

  • Smart operational modes and inverter optimize commercial escalator energy consumption under different load conditions, including outdoor escalator use cases.
  • Long lasting commercial escalator LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer.
  • Energy efficient inverter provides smooth speed regulation during standby operation and minimizes escalator energy consumption at full speed.
Travelmaster 110, 120

KONE COMMERCIAL ESCALATOR SAFETY

In addition to the standard commercial escalator safety features, we offer optional safety features, including:

  • New traffic commercial escalator signalization solutions to provide extra guidance.
  • Audible alarms provide clear guidance on escalator travel direction, including outdoor escalator use cases.
  • Alarm for travel direction if passengers enter a commercial escalator in the wrong direction.
  • Fall-prevention barrier and extended balustrades provide additional passenger protection.
Travelmaster 110

KONE COMMERCIAL ESCALATOR DESIGN

High quality visual design for both indoor and outdoor escalator use cases:

  • Innovative and attractive commercial escalator lighting solutions that also improve passenger guidance and safety.
  • Wide range of design options to create stunning visual effects and perfectly match your building’s architecture.
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio.

Contact Us for a Detailed Cost Estimate

Related topics

KONE ESCALATOR & AUTOWALK PLANNING GUIDE

Our easy-to-understand planning guide gives you all the information you need when planning an escalator or walking escalator solution, including guidance on building planning regulations and property safety codes.

Product Name Type Segment Maximum Rise Speed Inclination KONE TransVario Direct Drive Available 24/7 Connected Services Available Energy- Efficiency Class
KONE TravelMaster 110 Escalator Commercial, retail, hotel, office, multi-use, stadium, medical 13m 0.5 m/s 30°, 35°
Yes A+++
KONE TravelMaster 115 Inclined autowalk Commercial, retail, hotel, office, multi-use, stadium, medical 7m 0.5 m/s 10°, 12°
Yes A+++
KONE TransitMaster 120 Escalator Infrastructure 20m 0.5, 0.65, 0.75 m/s 27.3°, 30°, 35°
Yes A+++
KONE TransitMaster 140 Escalator Infrastructure 35m 0.5, 0.65, 0.75 m/s 27.3°, 30°
Yes A+++
KONE TransitMaster 165 Horizontal Autowalk Infrastructure 100m 0.5, 0.65, 0.75 m/s 0-6°
Yes A+++
