Escalator Planner
Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.
KONE TRANSITMASTER™ 120
Reliable people flow for transit environments
Equipment Information
Description

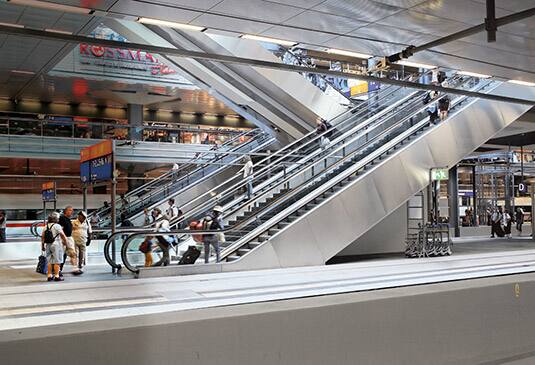

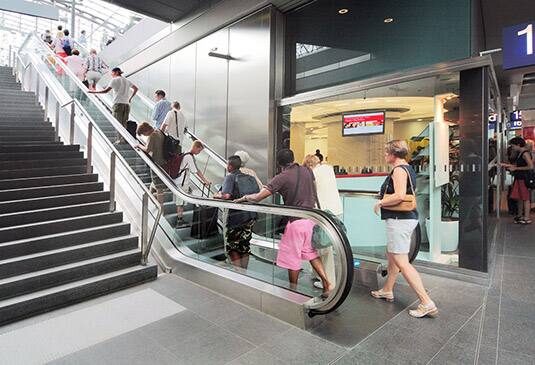

The KONE TransitMaster™ 120 is a durable, eco-efficient building escalator optimized for transit centers. It provides a smooth, safe ride and a pleasant passenger experience, even under the most demanding traffic conditions.
Equipment Specifications
Operational environment: indoor, semi-outdoor, outdoor
Speed: 0.5, 0.65, 0.75 m/s
Inclination: 27.3º, 30º, 35º
Step width: 800, 1000 mm
Vertical rise: up to 20 m
Escalator Safety
Safety is the starting point for every KONE building solution. The KONE TransitMaster™ 120 conforms to all local and international safety codes.
We provide standard user safety features, including comb plate impact device switches and emergency stop buttons for passengers.
KONE Tools and Downloads
Escalator Options and Highlights
ESCALATOR ENERGY-EFFICIENCY
Smart operational modes and inverters optimize average energy consumption under different load conditions
Long-lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
An energy-efficient inverter provides smooth motor speed regulation during standby operation and minimizes energy consumption at full speed
USER SAFETY ENHANCEMENT
In addition to the standard equipment safety features, we offer optional safety features including:
New traffic signalization solutions to provide extra guidance
Audible alarms provide clear guidance on escalator travel direction
Alarm for travel direction if passengers enter an escalator in the wrong direction
Fall-prevention equipment barriers and extended balustrades provide additional passenger protection
ESCALATOR DESIGN
High quality visual design for the best possible passenger experience:
Innovative and attractive inclined autowalk commercial lighting solutions that also improve passenger guidance and escalator passenger safety
A wide range of escalator truss design options to create stunning visual effects and perfectly match your building’s architecture
High-quality equipment component finishes and a harmonized look and feel throughout the KONE product portfolio
Contact Us for a Detailed Cost Estimate
Related topics
KONE Escalators and Autowalks
| Product name
| Type
| Segment
| Maximum rise
| Speed
| KONE TransVario premium drive available | Inclination
| 24/7 Connected Services available
| Energy-efficiency class
|
| KONE TravelMaster 110
| Escalator | Commercial, retail, hotel, office, multi-use, stadium, medical
| 13 m
| 0.5 m/s | TravelMaster™ 110T (factsheet) | 30°, 35°
| Yes | A+++ |
| KONE TravelMaster 115
| Inclined autowalk | Commercial, retail, multi-use, airport
| 7 m
| 0.5 m/s
| 10°, 12°
| Yes
| A+++ | |
| KONE TransitMaster 120
| Escalator | Metro, airport, station, transport hub, multi-use
| 20 m
| 0.5, 0.65, 0.75 m/s | TransitMaster™ 120T (factsheet) | 27.3°, 30°, 35° | Yes
| A+++ |
| KONE TransitMaster 140
| Escalator | Metro, airport, station, transport hub
| 35 m
| 0.5, 0.65, 0.75 m/s | TransitMaster™ 140T (factsheet) | 27.3°, 30° | Yes | A+++ |
| KONE TransitMaster 165
| Horizontal autowalk | Metro, airport, station, transport hub, multi-use
| 100 m length
| 0.5, 0.65, 0.75 m/s
| 0-6°
| Yes | A+++ |
